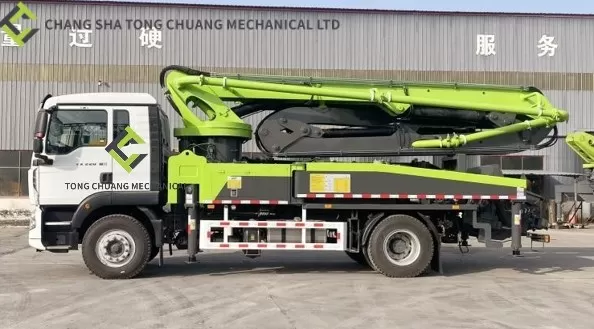

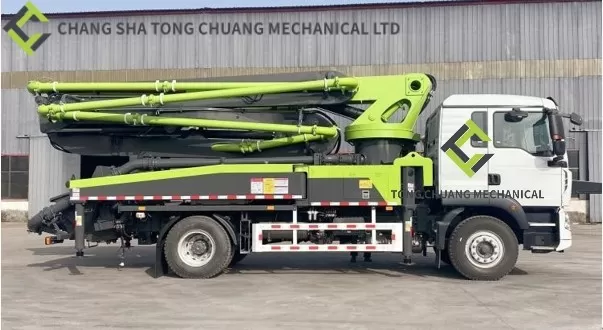

Weichai Engine Concrete Pump Truck 31 Meters With 2 Bridge

Minimum Order Quantity1piece
Packaging DetailsStandard export package
Payment TermsL/C, D/A, D/P, T/T
Place of OriginChangsha, Hunan, China
Model NumberDXD5180THBL
Pricenegotiate
Delivery Time5 days
Supply Ability2 pcs/month
Brand NameDFXD
Detail Information
Color::White GreenBrand::DFXD
Arm Length::31 MetersManufacturing Date::Brand New
High Light:Weichai Engine Concrete Pump Truck, Concrete Pump Truck 31Meters, 2Bridge Concrete Pump Truck

Product Description

New 31 meters pump truck advantage

  • Advantage 1:Rural pump truck market industry leader

Since 2009, the first single bridge pump truck in China, it has been optimized and upgraded. The 31-meter small pump truck, designed to solve the rural path, has become the most practical model in the rural pump truck market.

  • Advantage two: Vehicle design, reasonable and lean

The total length of the vehicle is 9 meters, the total height is 3.47 meters, the wheelbase is 4.5 meters, are the smallest in the same meter section of the peer, the transition is flexible, more easy to cope with the narrow and complex construction site in rural areas.

  • Advantage three: pumping work, strong and efficient

The pumping system adopts a large diameter conveying cylinder, which is strong and efficient, and the maximum theoretical pumping capacity can reach 100m³ / h.

  • Advantage four: Sky pump, ground pump double mode

The tail takes over the second to change the car pump, the horizontal distance between the pump pipe can reach 300 meters, one machine is multi-purpose, economical and efficient.

  • Advantage five: safe, reliable, stable and efficient

Using the active shock absorption technology of the boom, the vibration range of the boom under the full working condition is ± 0.2 meters, and the connection design of the open shaft structure boom reduces the impact on the key parts of the boom by more than 30%.

  • Advantage six: energy conservation and emission reduction, economic reliability

The pumping displacement is automatically matched with the engine power, and adapadjusted during the working process, the fuel consumption is reduced by 15%. Wireless remote control with one keystart Dynamic system, easy to operate, economical and reliable.

  • Advantage seven: intelligent digital, real-time control

The electronic control system is connected with the cloud platform, freely mastering the device status, self-diagnosis, etc., and can view the device position, driving path, and working time at the terminal in real time.

  • Advantage eight: professional focus, whole-hearted service

Free one-to-one on-site training service, free door-to-door inspection service, 1 hour rapid response,24 hours after-sales service, efficient service, The whole worry-free.

  Technical parameters of the 31-m pump truck

DXD5180THBL project unit technical parameters
 Chassis and complete vehicle parameters chassis Sinotruk Howo
 emission standard Six countries
 Engine brand Weichai
 Engine horsepowerPS220
 Bridge number2
 wheel basemm4500
 Total length * total width * total heightmm9000*2500*3470
 Vehicle qualitykg18000
 Arm frame and support leg parameters Maximum fabric heightmm30700
 Maximum fabric radiusmm26100
 Maximum fabric depthmm17000
 Arm frame folding modeRZ
 The first arm lengthmm6600
 corner°89°
 The second arm lengthmm5150
 corner°180°
 The third arm lengthmm4785
 corner°180°
 The fourth arm lengthmm5170
 corner°235°
 The fifth arm lengthmm5575
 corner°180°
 Turn table rotation Angle°359°
 Open the legX-H
  Front leg spread widthmm5800
 Rear leg spread widthmm6100
 Pumping system Maximum theoretical pumping capacitym³/h100
 Maximum export pressureMpa8.5
 The number of theoretical pumps Time / minute25
 Hydraulic system pressureMpa32
 The inner diameter of the conveying cylindermm230
 Delivery cylinder tripmm1400
 Transmission pipe diametermm125
 Hydraulic oil cooling mode air patenting
 Pumping the concrete collapse degreemm160-220
 Maximum aggregate sizemm40
 Hydraulic system type open-type system
