Sany Heavy Industry Used Concrete Pump Truck SYM5340THB 490C-8
| Minimum Order Quantity | 1piece |
| Packaging Details | Standard Export Package |
| Payment Terms | T/T、L/C、D/A、D/P |
| Place of Origin | Changsha, Hunan, China |
| Model Number | SYM5340THB 490C-8 |
| Price | negotiate |
| Delivery Time | 4 days |
| Supply Ability | 1 pcs/month |
| Brand Name | SANY |
| Detail Information | |||
| Color: | Red + Orange | Brand: | Sany |
|---|---|---|---|
| Chassis Model: | SYM5350THB1E | Maximum Speed: | 90km/h |
| Vertical Reach: | 48.6meters | Horizontal Reach: | 43.6meters |
| High Light: | Sany Used Concrete Pump Truck, SYM5340THB 490C-8 Pump Truck, Heavy Industry Used Pump Truck | ||
Product Description
Product features and advantages:
1: The SYM5340THB 490C-8 pump truck features one click fixed arm technology, intelligent vibration reduction technology, energy-saving technology, and rotational anti swing control technology.
2. Intelligent vibration reduction technology for boom: Perfect integration of German Putzmeister technology, effectively reducing boom shaking during pumping, reducing amplitude by 50%, and ensuring stable grip of the end hose.
3. Energy saving technology: fully integrated with German Putzmeister technology, with 29 commutations per minute (when the system pressure is 12MPa), the pumping efficiency can be increased by up to 25%, and the fuel consumption can be reduced by up to 10%.
| Pump tuck parameters | ||||||||||
| Unit type | SYM5340THB 490C-8 | Engine model | D12C5-490E0/ P11C-WE | |||||||
| Vehicle Weight (kg) | 43870 | Dimensions(L*W*H)(mm) | 12380*2550*4000mm | |||||||
| Chassis | Sany | Chassis model | SYM5350THB1E | |||||||
| Engine Power(kW) | 348KW (Sany Deutz)/304KW (Hino) | Engine displacement (cc) | 12.12 (Sanyi Deutz)/10.52 (Hino) L | |||||||
| Quantity of concrete delivered | 50000cubic meters | maximum speed | 90km/h | |||||||
| Vertical Reach | 48.6meters | Horizontal Reach | 43.6meters | |||||||
| Pump system parameter information | ||||||||||
| Low pressure theoretical displacement of concrete(m³/h) | 170 | Theoretical pumping pressure high pressure | 12Mpa | |||||||
| Water tank volume (L) | 620 | Concrete cylinder cylinder diameter stroke (mm) | 260×1900 | |||||||
| Hydraulic system | open type | Fuel tank volume (L) | 680 | |||||||
| Arm frame, support leg parameters | ||||||||||
| Vertical depth of boom | 30.8m | Minimum unfolding height | 13.9m | |||||||
| Length of the first arm | 9760mm | Angle of the first arm | 89 ° | |||||||
| Second arm length | 7670mm | Second arm angle | 180 ° | |||||||
| Third arm length | 7410mm | Third arm angle | 180 ° | |||||||
| Fourth arm length | 9670mm | Fourth arm angle | 235 ° | |||||||
| Fifth arm length | 10060mm | Fifth arm angle | 215° | |||||||

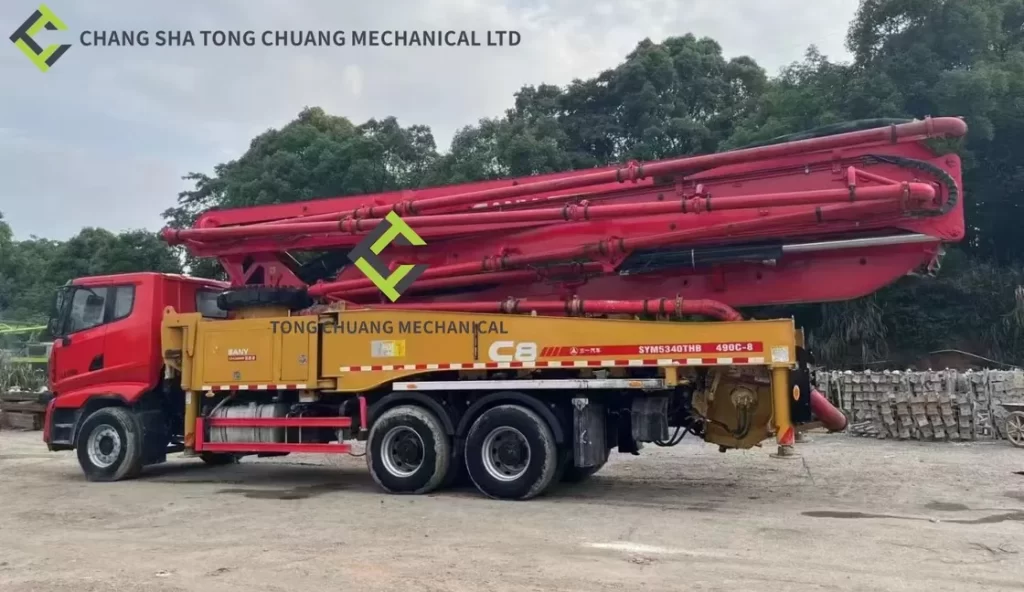

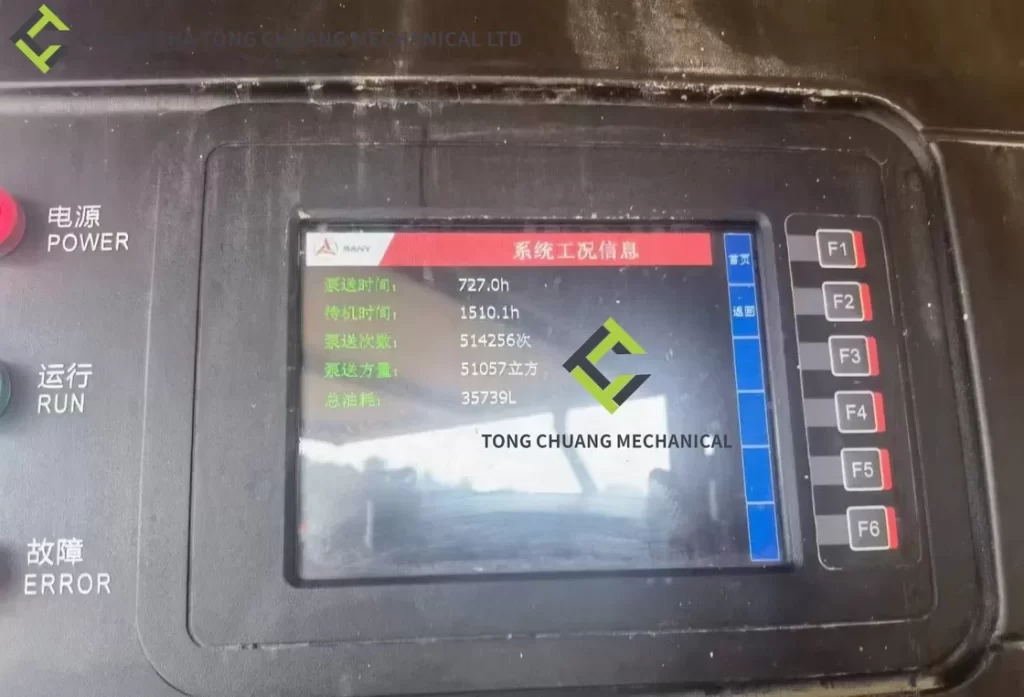

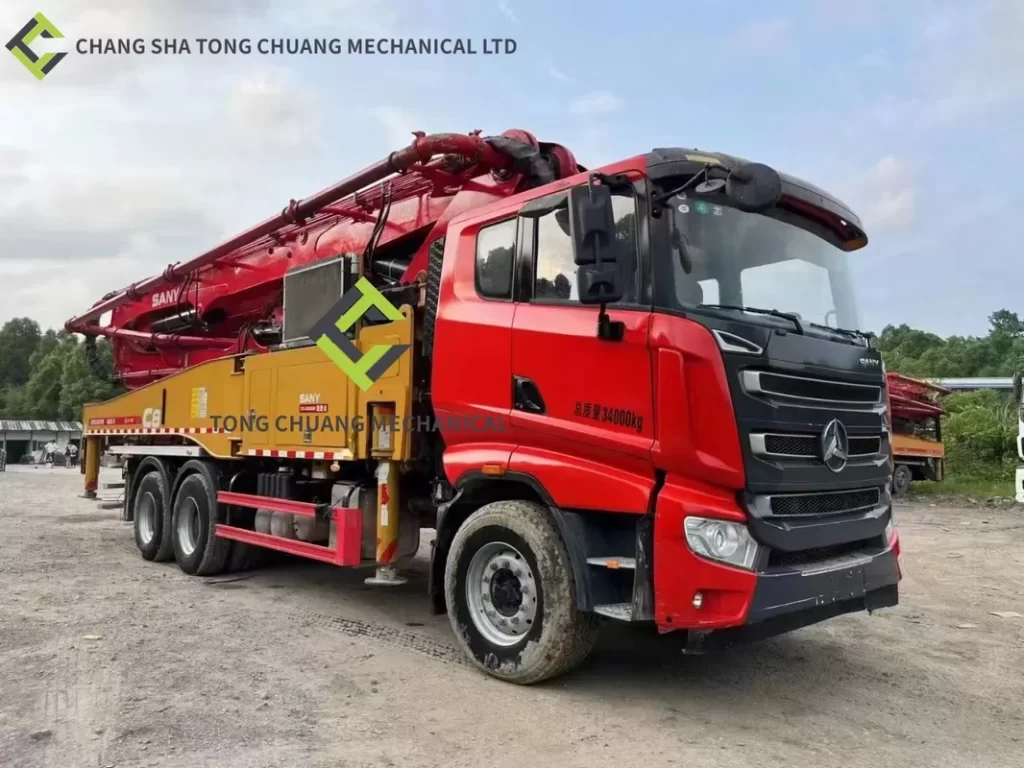

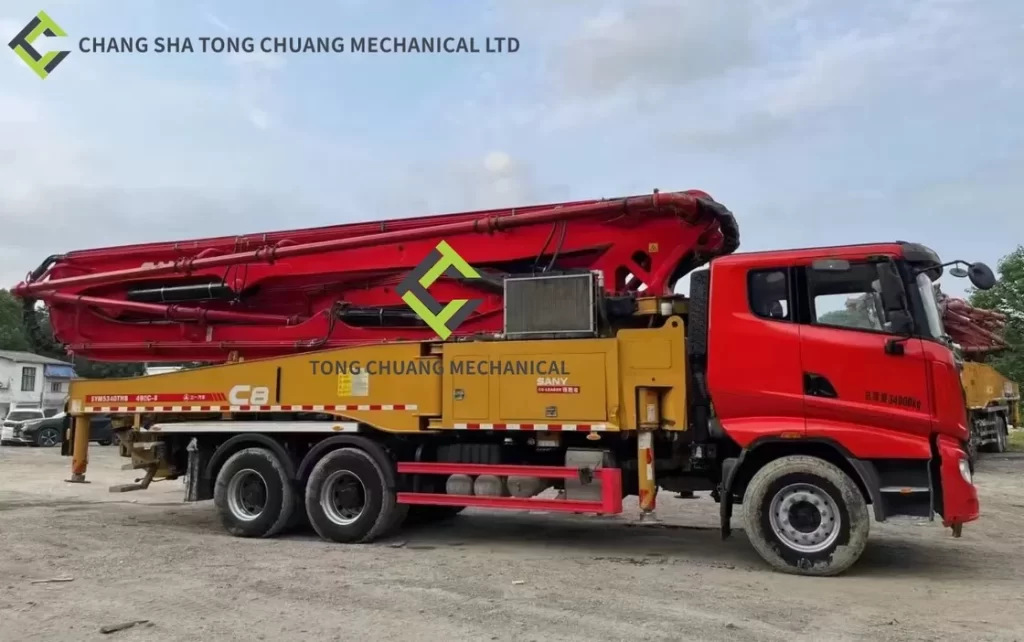

The pictures as follows:
