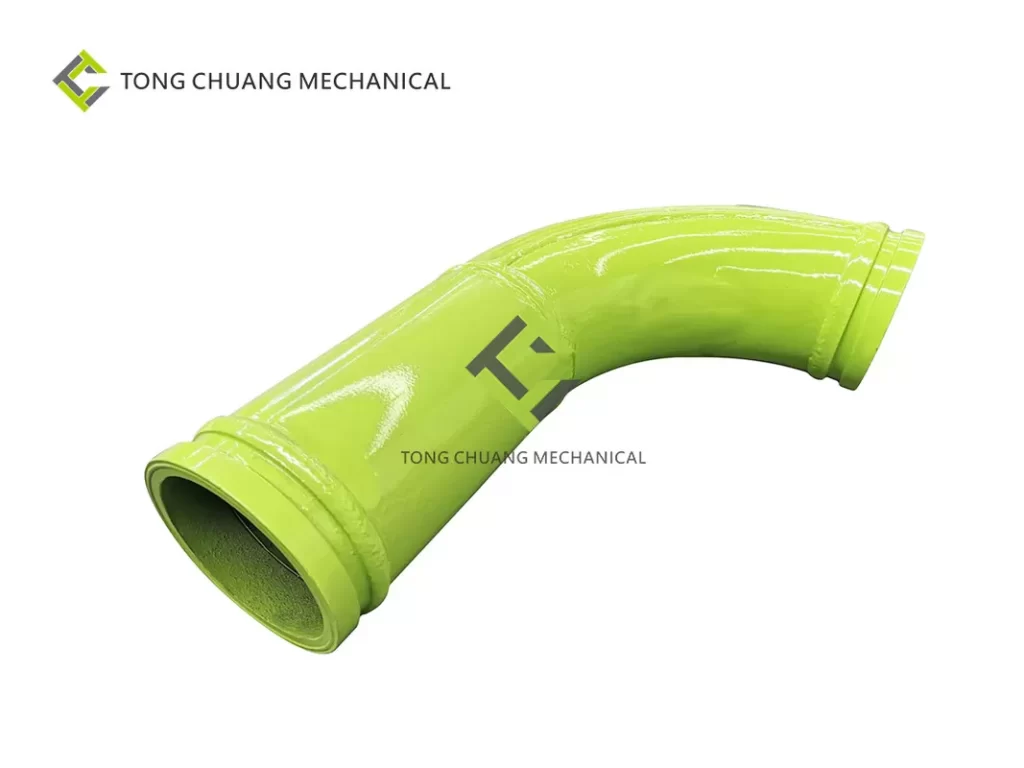

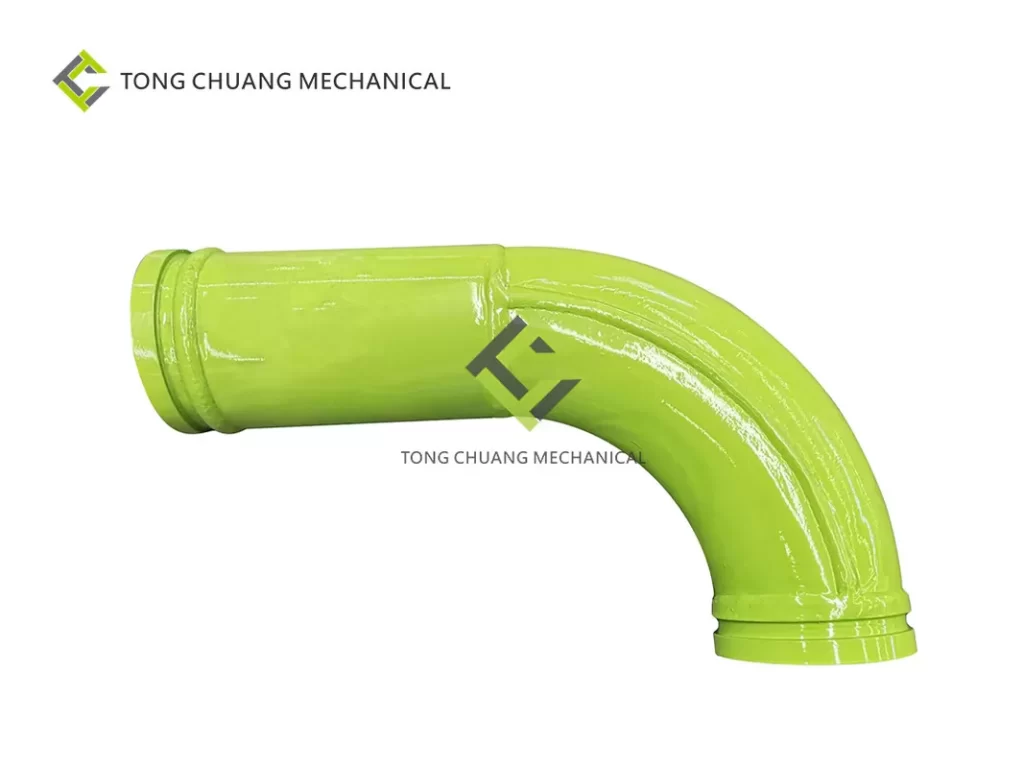

Iron Concrete Pump Pipeline Double Wall 90 Degree Elbow 125*R275-90°+225mm

Minimum Order Quantity1
Packaging DetailsExport standard packing 550*148*148
Payment TermsD/P, T/T
Place of OriginChangsha, Hunan, China
Model Number125*R275-90°+225mm
Price$95
Delivery Time8 work days
Supply Ability1000 pcs/month
Brand NameChangsha Tongchuang Mechanical
Detail Information
Name:Pump Truck Double-layer Lengthened ElbowProduct Name:Concrete Pump Elbow
Applicable Model:Pump Truck, Distributor, Concrete PumpSpecifications And Models:125*R275-90°+225mm
Specification Size:580*148*148mmQuality Assurance(m³):80000
Material:Inner Tube High Chromium Cast IronHardness:≥HRC64
High Light:Concrete Pump Pipeline Double Wall Elbow, Concrete Pump Pipeline 90 Degree Elbow, Concrete Double Wall 90 Degree Elbow

Product Description

Concrete Pump Pipeline Double-layer lengthened elbow 125*R275-90°+225mm

Concrete Pump Pipeline Double-layer lengthened elbow 125*R275-90°+225mm
NamePump truck double-layer lengthened elbow
Product nameConcrete Pump Elbow
Place of originChangsha, Hunan, China
Brand nameChangsha Tongchuang Mechanical
Applicable modelPump truck, distributor, concrete pump
Specifications and models125*R275-90°+225mm
Specification size580*148*148mm
Weight24KG
Hardness≥HRC64
Quality assurance(m³)80000
MaterialInner tube high chromium cast iron
Supply capacity1000 Pieces/month
PackingExport standard packing 580*148*148mm
Minimum order2
Price$95

Product features and advantages:

1,Strong wear resistance, safety and explosion-proof
2,Automatic welding, stable quality
3,Patented formula, special technology

Maintenance method:

1,After the operation is finished, please clean the pipeline in time.
2,During assembly, align the pipe mouth accurately, and the pipe clamp is fixed firmly, which can prolong the service life of the flange.
3,When pumping about 30,000 cubic meters of concrete, please turn the elbow around for use.
