In 2018 Sany Heavy Industry BC5180BH1169 Used Concrete Pump Truck 30 Meter
| Minimum Order Quantity | 1piece |
| Packaging Details | Standard Export Package |
| Payment Terms | T/T、L/C、D/A、D/P |
| Place of Origin | Changsha, Hunan, China |
| Model Number | BC5180BH1169 |
| Price | negotiate |
| Delivery Time | 15 days |
| Supply Ability | 1 pcs/month |
| Brand Name | SANY |
| Detail Information | |||
| Color: | Red + Orange | Brand: | Sany |
|---|---|---|---|
| Engine Power(kW): | 247kW | Maximum Speed: | 95km/h |
| Arm Length: | 30 Meter | ||
| High Light: | Used Concrete Pump Truck 30Meter, Sany Used Concrete Pump Truck | ||
Product Description

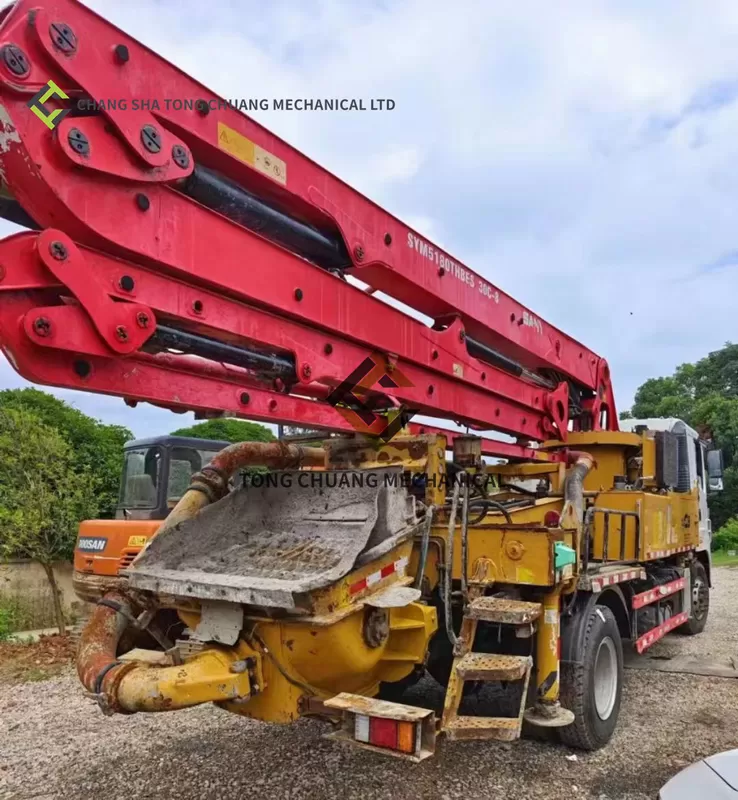

In 2018 Sany Heavy Industry Used BC5180BH1169 Concrete Pump Truck
Product features and advantages:
1: Manufacture date: 2018

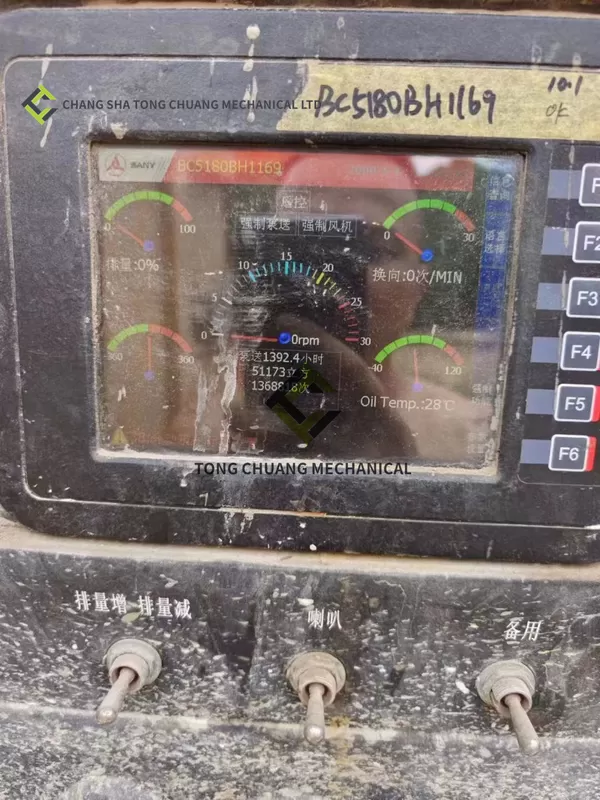

2: Pump working time: 1392.4 hours
3: conveying square quantity of concrete: 51173 cubic meters
4:Very favorable prices for sale
Technical parameters of Sany BC5180BH1169 30 meter concrete pump truck:
Here are the technical parameters of the Sany BC5180BH1169 30m concrete pump truck:
1: Model: BC5180BH1169
2: Maximum theoretical conveying distance: 30m
3: Maximum theoretical conveying height: 29.7m
4: Maximum theoretical conveying depth: 19.5m
5: Pumping pressure: 8MPa
6: Pumping frequency: 16 times/min
7: Chassis configuration: SINOTRUK HOWO chassis
8: Engine power: 247kW
9: Engine emission standard: China National V
10: Hydraulic system pressure: 32MPa
11: Hydraulic oil tank capacity: 400L
12: Total weight: 18000kg
13: Overall dimensions: 8900mm×2490mm×3850mm
Sany Heavy Industry BC5180BH1169 30 meter concrete pump truck HOWO chassis parameters:
Here are the parameters of the SINOTRUK HOWO chassis used in the Sany BC5180BH1169 30m concrete pump truck:
1: Chassis model: ZZ5187N4617E1R1
2: Engine model: WD615.87, meets China’s National V emission standard
3: Engine power: 247kW
4: Maximum torque: 1350N.m
5: Displacement: 9.726L
6: Cab type: HW76 long top single row cab, with air conditioning
7: Transmission model: HW19710, 10 forward and 2 reverse manual transmission
8: Drive form: 6×4, with rear double axle drive
9: Wheelbase: 4600mm
10: Tire specifications: 12.00R20, with double-layer steel wire tires
11: Fuel tank capacity: 300L
