In 2014 Sany Heavy Industry Used SY5190THB25 Concrete Pump Truck
| Minimum Order Quantity | 1piece |
| Packaging Details | Standard Export Package |
| Payment Terms | T/T、L/C、D/A、D/P |
| Place of Origin | Changsha, Hunan, China |
| Model Number | SY5190THB25 |
| Price | negotiate |
| Delivery Time | 8 days |
| Supply Ability | 1 pcs/month |
| Brand Name | SANY |
| Detail Information | |||
| Color: | Red + Orange | Brand: | Sany |
|---|---|---|---|
| Engine Power(kW): | 244 | Maximum Speed: | 90km/h |
| High Light: | SY5190THB25, 90km/h Used Concrete Pump Truck | ||
Product Description
In 2014 Sany Heavy Industry Used SY5190THB25 Concrete Pump Truck
Product features and advantages:
1: Manufacture date: 2014
2: Pump working time: 5526 hours
3: conveying square quantity of concrete: 92052 cubic meters 4:Very favorable prices for sale
| Pump tuck parameters | ||||||||||
| Unit type | SY5190THB25 | Engine model | HINO P11C-UH | |||||||
| Vehicle Weight (kg) | 18900 | Dimensions(L*W*H) | 10000*2550*3860mm | |||||||
| Chassis | SANY | Quantity of concrete delivered | 92052cubic meters | |||||||
| Engine Power(kW) | 240 | maximum speed | 90km/h | |||||||
| Vertical Reach | 25meters | Horizontal Reach | 21meters | |||||||
| Pump system parameter information | ||||||||||
| Low pressure theoretical displacement of concrete(m³/h) | 100 | Max Output Pressure (Mpa) | 16 | |||||||
| Hydraulic system | open type | Concrete cylinder cylinder diameter stroke (mm) | 200*1800 | |||||||
| Arm frame, support leg parameters | ||||||||||
| Vertical depth of boom | 10.8m | Minimum unfolding height | 6.4m | |||||||
| Length of the first arm | 6500mm | Angle of the first arm | 93° | |||||||
| Second arm length | 4650mm | Second arm angle | 180 ° | |||||||
| Third arm length | 4650mm | Third arm angle | 245 ° | |||||||
| Fourth arm length | 5000mm | Fourth arm angle | 245 ° | |||||||

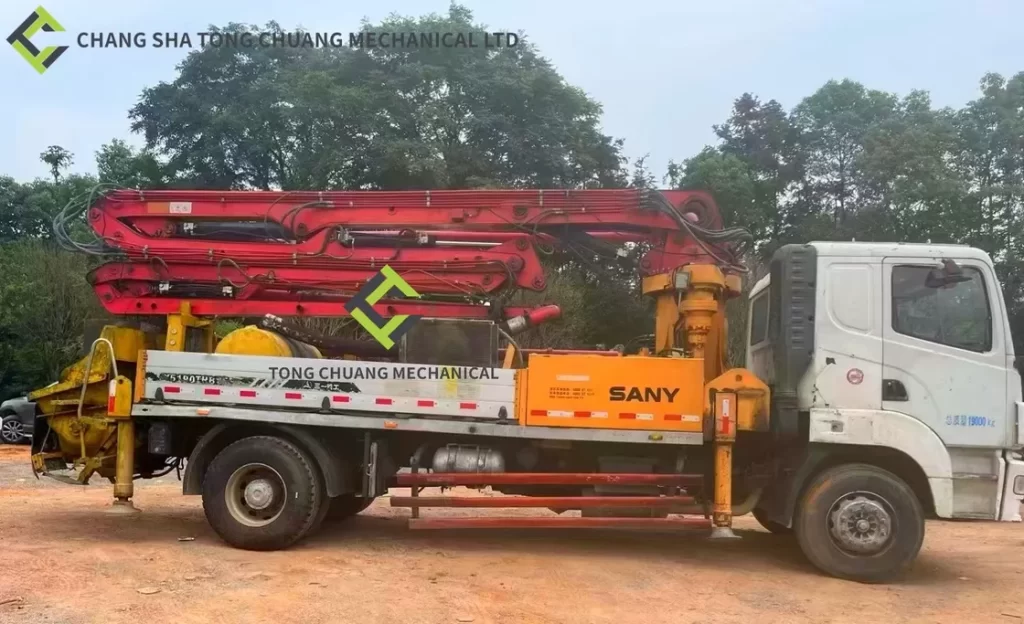

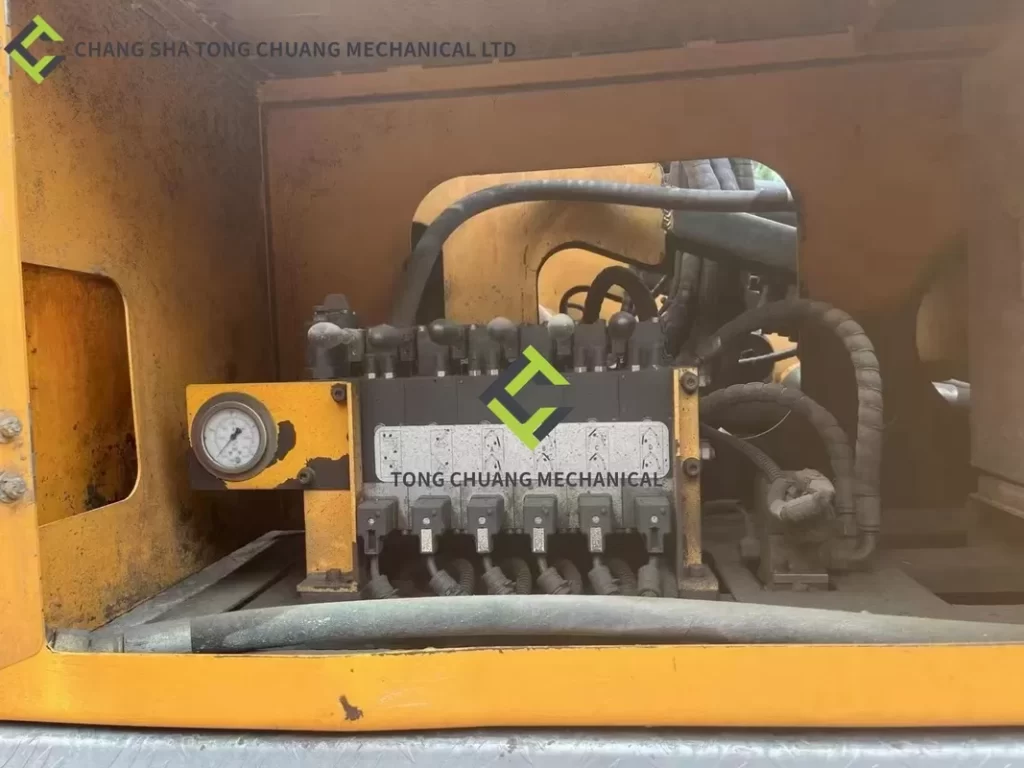

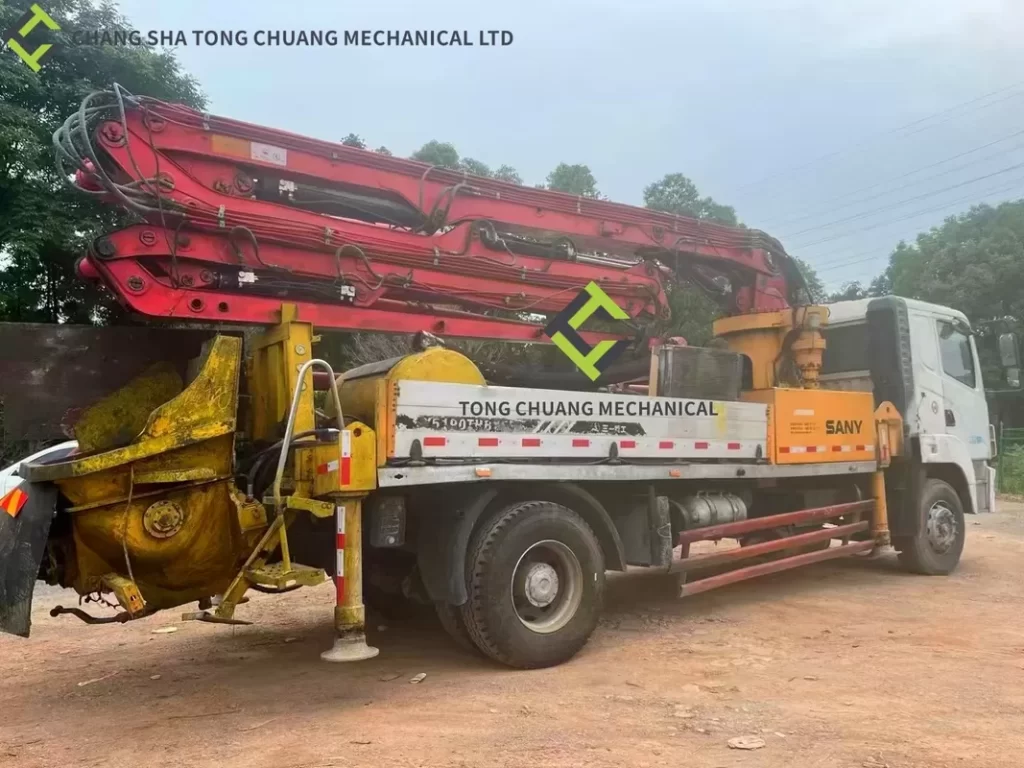

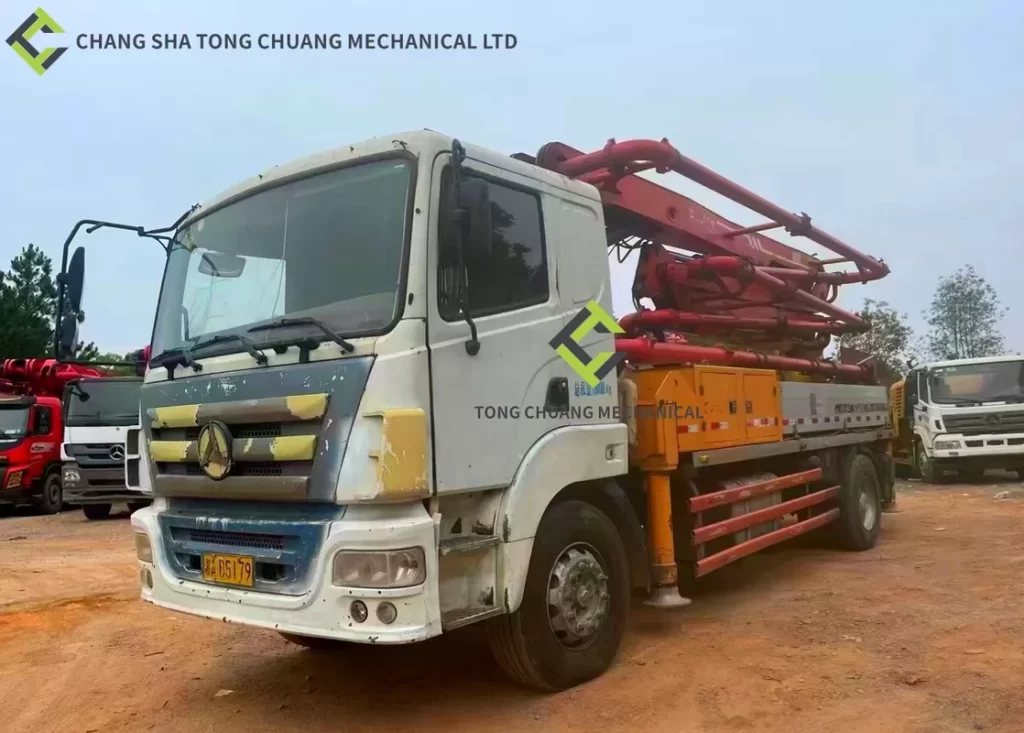

The pictures as follows:
