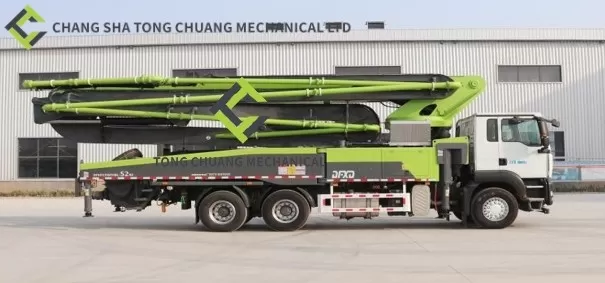

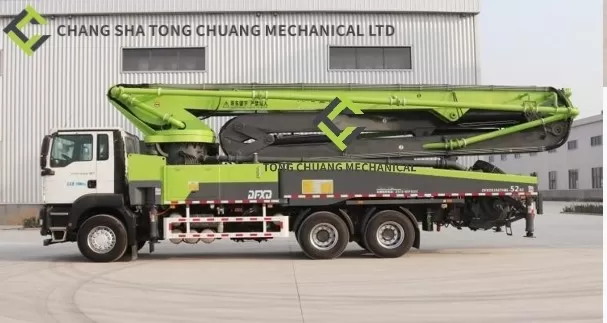

3 Bridge Concrete Pump Truck 52 Meters RZ Arm Frame Folding Mode
| Minimum Order Quantity | 1piece |
| Packaging Details | Standard export package |
| Payment Terms | L/C, D/A, D/P, T/T |
| Place of Origin | Changsha, Hunan, China |
| Model Number | DXD5356THBL |
| Price | negotiate |
| Delivery Time | 5 days |
| Supply Ability | 1 pcs/month |
| Brand Name | DFXD |
| Detail Information | |||
| Color:: | White+Green | Arm Length: | 52 Meters |
|---|---|---|---|
| Brand:: | DFXD | Manufacturing Date:: | Brand New |
| Chassis:: | Sinotruk Sitrak / Isuzu | Engine Horsepower:: | 400/420 |
| Bridge Number:: | 3 | Size:: | 12300*2500*4000 |
| Vehicle Quality: | 35000KG | ||
| High Light: | 3 Bridge Concrete Pump Truck, Concrete Pump Truck 52M, RZ Arm Frame Pump Truck | ||
Product Description
New 52 meters pump truck advantage
- Advantage 1: tailor your best partner
In 2016, the 50 m boom pump car, the limit number of meters, and the legal car is not overweight.
- Advantage two: the whole vehicle design, reasonable and lean
The total length of the vehicle is 12.3 meters, and the total height is 4 meters, which can easily meet the national urban planning, high-speed rail, high-speed rail, water conservancy, etc Demand and use of construction projects.
- Advantage three: pumping work, strong and efficient
The pumping system adopts a large diameter conveying cylinder, which is strong and efficient, and the maximum theoretical pumping capacity can reach 140m³ / h.
- Advantage four: the optimal design and material
The use of modern processing and production technology, heavy investment in the research and development of lightweight boom structure, the boom through axis structure boom connection design, the table using “S” tilt technology, the pump truck leg span is smaller, the boom stability canbe higher.
- Advantage five: safe, reliable, stable and efficient
Using the active shock absorption technology of the boom, the vibration range of the boom under the full working condition is ± 0.2 meters, and the connection design of the open shaft structure boom reduces the impact on the key parts of the boom by more than 30%.
- Advantage six: energy conservation and emission reduction, economic reliability
The pumping displacement is automatically matched with the engine power, and adapadjusted during the working process, the fuel consumption is reduced by 15%. Wireless remote control with one key start Dynamic system, easy to operate, economical and reliable.
- Advantage seven: intelligent digital, real-time control
The electronic control system is connected with the cloud platform, freely mastering the device status, self-diagnosis, etc., and can view the device position, driving path, and working time at the terminal in real time.
- Advantage eight: professional focus, whole-hearted service
Free one-to-one on-site training service, free door-to-door inspection service, 1 hour rapid response, 24 hours after-sales service, efficient service, The whole worry-free.
Technical parameters of the 52-m pump truck
| DXD5356THBL | project | unit | technical parameters | |
| Chassis and complete vehicle parameters | chassis | – | Sinotruk Sitrak / Isuzu | |
| emission standard | – | Six countries | ||
| Engine brand | – | German Man / Isuzu | ||
| Engine horsepower | Ps | 400/420 | ||
| Bridge number | – | 3 | ||
| wheel base | mm | 4600+1400/4800+1370 | ||
| Total length * total width * total height | mm | 12300*2500*4000 | ||
| Vehicle quality | kg | 35000 | ||
| Arm frame and support leg parameters | Maximum fabric height | mm | 51100 | |
| Maximum fabric radius | mm | 45200 | ||
| Maximum fabric depth | mm | 33900 | ||
| Arm frame folding mode | – | RZ | ||
| The first arm | length | mm | 10600 | |
| corner | ° | 89° | ||
| The second arm | length | mm | 8750 | |
| corner | ° | 180° | ||
| The third arm | length | mm | 8450 | |
| corner | ° | 180° | ||
| The fourth arm | length | mm | 9530 | |
| corner | ° | 235° | ||
| The fifth arm | length | mm | 6900 | |
| corner | ° | 180° | ||
| The sixth arm | length | mm | 3500 | |
| corner | ° | 90° | ||
| Turn table rotation Angle | ° | 359° | ||
| Open the leg | – | X-H | ||
| Front leg spread width | mm | 10100 | ||
| Rear leg spread width | mm | 10800 | ||
| Pumping system | Maximum theoretical pumping capacity | m³/h | 140 | |
| Maximum export pressure | Mpa | 8.5 | ||
| The number of theoretical pumps | Time / minute | 25 | ||
| Hydraulic system pressure | Mpa | 32 | ||
| The inner diameter of the conveying cylinder | mm | 260 | ||
| Delivery cylinder trip | mm | 1800 | ||
| Transmission pipe diameter | mm | 125 | ||
| Hydraulic oil cooling mode | – | air patenting | ||
| Pumping the concrete collapse degree | mm | 160-220 | ||
| Maximum aggregate size | mm | 40 | ||
| Hydraulic system type | – | open-type system | ||
