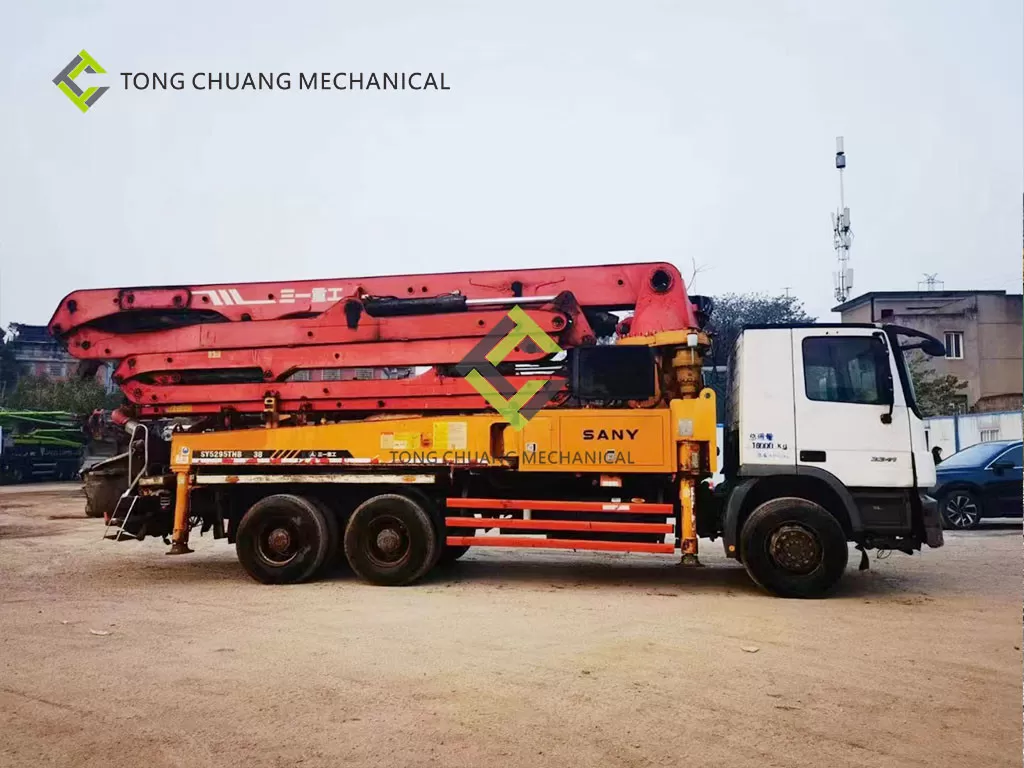

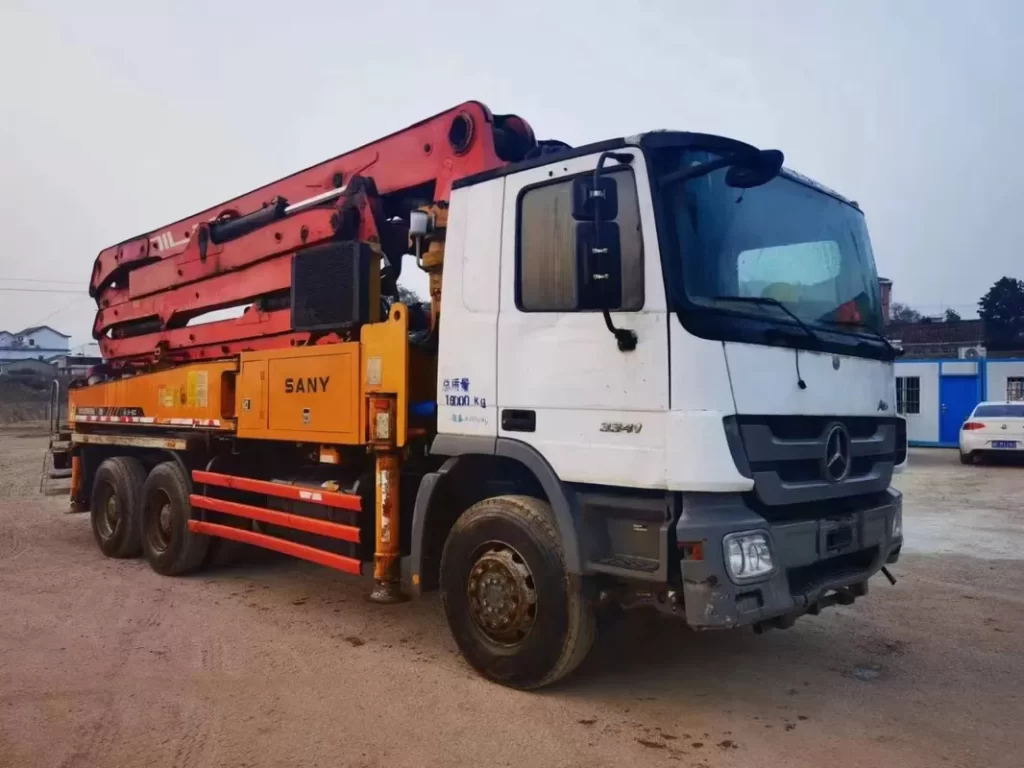

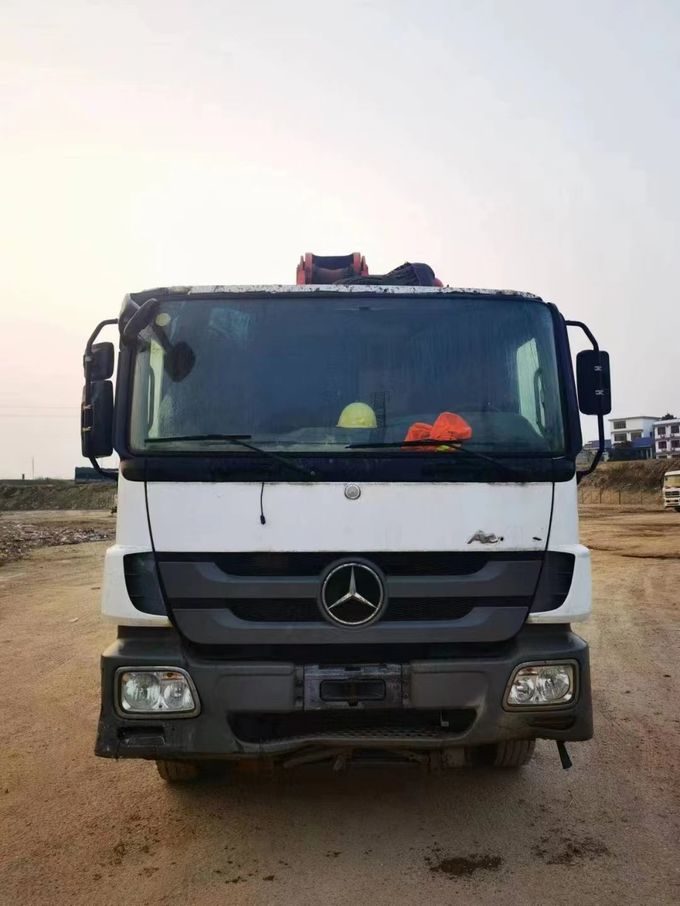

2014 Sany Heavy Industry 38 Meters Mercedes Benz Second Hand Concrete Pump Truck

Minimum Order Quantity1piece
Packaging DetailsStandard Export Package
Payment TermsT/T、L/C、D/A、D/P
Place of OriginChangsha, Hunan, China
Model NumberSY5295THB 380C-8
Pricenegotiate
Delivery Time15 days
Supply Ability4 pcs/month
Brand NameSany heavy industry
Detail Information
High Light:2nd Hand Concrete Pump Truck, 1800rpm Concrete Pump Truck, 38Meters Mercedes Benz Concrete Pump

Product Description

Product features and advantages:

1:Self locking function of quick release independent double mixing device, the mixing device adopts high torque steel ball plunger motor.
2:With the function of automatically withdrawing the piston, it is convenient and fast to check and replace the piston.

3:SYMC integrated controller with independent property right and SYLD display screen are adopted, which has faster operation speed and higher protection performance than PLC control.

4:The patented waterproof sealing technology of the main oil cylinder is set with a high-pressure buffer zone to effectively prevent the emulsification of hydraulic oil

Chassis parameter configuration
modelSY5295THB 380C-8Model abbreviationSY5295THB
Vehicle Weight (kg)28800KGDimensions(L*W*H)​(mm)11380*2500*3990
ChassisBENZ Actros 3341engine typeOM501LA. Ⅲ /17
Engine Power​(kW)300kW/1800rpmEmission StandardEuro Ⅲ
braking length≤ 10m/30km/houtput volume11.946 L
Colorred+ whitemaximum speed 80km/h
Pump system parameter information
Vertical Reach38metersHorizontal Reach34meters
Main oil pump brandRexrothMain oil pump modelA11VLO190LRDU2/11R-NZD12K02
Max Output Quantity(Low / High Pressure) (m³ / h)140/100 m³ / hMax Output Pressure(Low / High Pressure)(Mpa)8.3/12 Mpa
Theoretical pumping times (low / high pressure) (times / min)23.5/16.5 t/minConcrete cylinder cylinder diameter stroke (mm)260×2145
